The inability of experts to articulate the knowledge required to solve a problem is, arguably, the greatest challenge to building an expert system. The problem is made worse in situations where the response of the expert must be so rapid that there is not even a chance of a plausible post hoc reconstruction of the decision processes involved. For that reason, construction of the knowledge base by example is the only approach available. Examples can be used in two ways. They may be used as input to an induction program whose task is to find an abstraction of a control strategy from the data. Examples may also be used to induce the expert to discern difference between cases, thereby allowing the knowledge acquisition system to construct rules semi-automatically. The work presented in this paper demonstrates the feasibility of both approaches. In particular, it shows that the RDR methodology can be extended to domains where the expertise involved is necessarily subcognitive. This is demonstrated by the application of a combination of ripple-down rules and machine learning to the task of acquiring piloting skills for an aircraft in a flight simulator.

• 1. Introduction
• 2. The Task
• 3. Knowldge Acquisition
• 4. Learning
• 5. Constructing Autopilot with Parvaz
• 6. Testing the System
• 7. Conclusion
• 8. References

1 Introduction

Learning symbolic rules by observing a human operator is also called behavioural cloning (Michie, Bain & Hayes-Michie, 1990; Sammut et al, 1992; Urbancic & Bratko, 1994) and has two stages. First, an operator skilled in a task, is asked to control the system. During his or her performance, the state of the system along with the operator's action, are logged to a file. In the next stage, a learning program uses the logged information to construct control rules .

Sammut et al, (1992) demonstrated a particularly difficult application of behavioural cloning in learning to control an aircraft in a flight simulator. They used a flight simulator on a Silicon Graphic computer and restricted the task to learning to fly a Cessna 150 on a predefined flight path. Three human pilots were asked to fly the aircraft thirty times through the same flight plan. The accumulated file for the thirty flights for each pilot was used to create ca controller for each of the four controls available, namely, elevators, ailerons, thrust, and flaps. Quinlan's C4.5 (Quinlan, 1993) was used as the induction engine.

Although able to successfully construct an autopilot capable of flying the aircraft through the required flight plan, the original learning to fly experiments encountered a number of problems:


• The decision trees constructed by C4.5 were so large that they were unreadable.
• The autopilots were brittle. That is, they failed when a moderate amount of variation was introduced into the simulation.
• They required a large number of examples from trainer.

This paper describes just such an approach. We show that ripple-down rules (RDR) can be used to construct a controller for a complex dynamic system, such as an aircraft. This is significant in that RDR have mostly been demonstrated for classification tasks. We also show that relatively compact and understandable rules can be built without an excessive number of examples being represented by the trainer and these rules can be quite robust. Another feature of this system is that it allows machine learning methods to be mixed with RDR's, drawing on the advantages of each approach.

In the following sections, we briefly describe the problem domain and the nature of the data available. We give an overview of the knowledge acquisition system and the give details of the machine learning and RDR tools used. We then report the results of experiment and conclude with some indications of future research directions.


2 The Task

1. A flight starts with the aircraft at the beginning of the runway pointing to the North. It must take off and fly to an altitude of 2000 feet,
2. then maintain straight and level flight until a distance of 32000 feet from the starting point.
3. The aircraft then turns right to a compass heading of about 330_ and maintains that heading until a distance of about 42000 feet.
4. After reaching that distance from the starting point, the aircraft turns left until it is pointing back towards the runway.
5. The pilot lines up on runway,
6. descends and
7. lands.

The source code of the flight simulator has been modified so that,


the pilot can trace a flight and diagnose incorrect decisions using RDR's;

RDR's also allow the pilot to add new rules during a flight;

the display panel has been altered to display some additional variables digitally;

all the state variables and control settings can be logged to a file.

3 Knowledge Acquisition

The same inability to introspect motivated the development of ripple-down rules. However, the RDR methodology does not seek to entirely exclude the human from the process of building rules to emulate the desired skill. Rather, the human is asked to critique the performance of the rules and point out differences between cases when the program fails. In the case of controlling a dynamic system, RDR's make use of the fact that while the human operator is not aware of the mechanisms involved in a low-level skill, he or she may be aware of goals and sub-goals. This knowledge allows the operator to reason about cases.

Dynamic Ripple Down Rules (DRDR) implement the RDR method for controlling dynamic systems (Shiraz, 1997). The basic algorithm of DRDR is the same as RDR. In actual implementation, DRDR stores the knowledge base as a binary tree with a rule at each node. Each node has a rule condition and conclusion and two branches depending on whether the rule is satisfied or not by the data being considered [Figure 1].

A ripple-down rule as the general form:


if condition then conclusion because case except

if ...
else if ...

if a and b then c because 1 except

if d then e because 2

else if f and g then h because 3

The numbers, 1, 2 and 3, in this example, refer to cases. RDR's a re built incrementally. Each time the RDR fails to produce the correct answer, a new rule, along with the case that caused its creation, are added to the RDR, Suppose an RDR fails. We compare the new case with the case associated with the last fired rule. The differences give rise to the conditions that will be placed in a new rule that will distinguish the new case from the old. If a rule's conditions were satisfied by a case when they should not have been, a new rule is added as an exception. When a rule's conditions were not satisfied by a new case when they should have been, a new rules is added as a n alternative (else).

The initial RDR usually has the form:


if true then default conclusion because default case

That is, in the absence of any other information, the RDR recommends taking some default action. For example, in a control application it may be to assume everything is normal and not make any changes. If a condition succeeds when it should not, then an exception is added (i.e. a nested if-statement). Thus the initial condition is always satisfied, so that when the do nothing action is inappropriate, an exception is added.

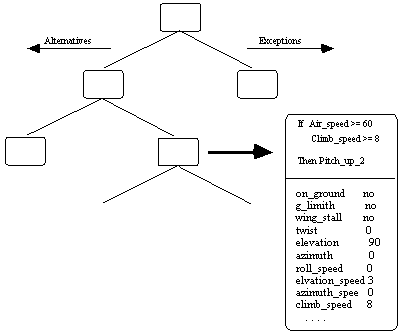

A ripple-down rule can also be viewed graphically as a binary tree in which nodes are condition/conclusion pairs and the exceptions and alternatives follow the branches of the tree, as shown in figure 1. The figure also shows a typical case associated with a rule. Each case contains values for all of the variables listed in table 1.

Although the basic RDR methodology has been retained, we require additional features in order to apply ripple-down rules in this domain. These extensions form the basis of Dynamic RDR's (DRDR), and are described next,


3.1 Transferring information from the flight simulator to DRDR

3.2 Multiple knowledge bases

DRDR handles the four knowledge bases and outputs multiple conclusions (one from each of the four RDR's). Whenever the pilot pauses the flight to investigate the current rules, he or she is able to see DRDR's conclusion for all action variables (Figure 2).



Figure 2: One of the windows provided in the DRDR shell

3.3 New conclusions can be entered graphically

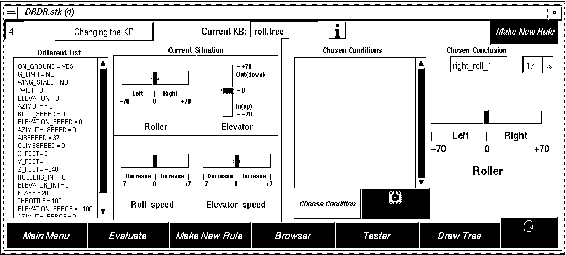

Figure 3: Window for creating new rules.

3.4 Interacting with a learning system

Before describing the knowledge acquisition system, as a whole, we first describe the learning algorithm.

4 Learning

To automatically construct rules from the pilot's behaviour, we use LDRDR (Shiraz, 1997). The basic algorithm for LDRDR is to search the data logged from a flight, record by record, and find those attributes that cause an action, then create rules based on those attributes and their qualitative states. The assumption is that the qualitative state of variables changes when an action is performed.

The main reason for introducing LDRDR (Shiraz, 1997) instead of using one of the existing machine learning programs was the need to deal with sequential data. In addition, it was necessary to have a program that was compatible with DRDR, with the ability to learn incrementally. Other machine learning algorithms that construct ripple-down rules, for example, Induct/RDR (Gaines & Compton, 1992), are batch algorithms and are not designed to deal with sequential data. LDRDR is specifically designed to work with sequential data. It takes the current knowledge base, the behavioural traces, and a priority list as its input. It creates rules that are added to the knowledge base to deal with cases not previously handled correctly. The LDRDR algorithm constructs a controller as follows:


for each record in the behavioural trace:

• Test the next record against the knowledge base
• If the conclusion of the RDR differs from the recorded trace, create a new rule to correctly handle the new record.
• Add the new rule to the knowledge base

The logged data usually contains information from different stages. This data is usually noisy and contains many redundant records. Pre-processing prepares the logs for the learning program. This includes segmenting the logged data, discretising control values, eliminating spurious values and creating separate inputs for each control action.

After pre-processing, each of the data files and the existing RDR's for a particular control action are to the LDRDR algorithm. LDRDR also uses a priority list, which we discuss later. The output of LDRDR is an extension of the original RDR to cover cases in the input data that were not covered by the original RDR. The new RDR is converted into C if-statements by recursively traversing the RDR and creating one if-statement for each rule. An if-statement's conditions are the conjunctions of all true conditions in the RDR from the root to the rule. Rules will be executed sequentially. If any of the rules is executed, control will jump to the end of the list to guarantee a single conclusion from the tree. If none of the rules fires, the last rule, which is the default rule, will be executed.


4.1. Data collection and preparation

There is always a delay between a stimulus and a response. Ideally we would like to record the pilot's action and the event that actually provoked the action. The problem is how can we know when that was? This is not a trivial issue, because human reaction time is not a constant, varying from person to person. Moreover, the reaction time of a person varies depending on the task. If the task is performed frequently and becomes familiar, the response time is shorter than for situations which are new for the human. In addition to these problems, pilots usually anticipate the future location of the aircraft and prepare a response for that state. In this experiment, following Sammut, et al (1992), we decided to use a response time of one second in each stage of the flight. We have not attempted to model the pilot's predictive behaviour.

As with DRDR, different sets of rules are created for each stage. In each stage, different knowledge bases are created for each action. Therefore, twenty-eight knowledge bases have to be created for a complete flight (4 control action times 7 flight stages).

The first stage of pre-processing is to segment the data into the stages where they were recorded. To make the segmentation of logged data easy, a new attribute has been added at the beginning of the recorded data to show the record's stage number. Based on this attribute, the filtering program segments the recorded data.

The Cessna aircraft's control system consists of four moveable control surfaces (elevator, flaps, ailerons, and rudder) plus the throttle. The values of the control variables are continuous. However, the learning algorithm can only deal with discrete class values. To solve this problem, a pre-processor is used to sub-divide the variable settings into intervals that can be given discrete labels. The range for each partition is chosen by analysing the frequency of occurrence of the values. The method of discretisation follows Sammut et al. (1992).


4.2. Constructing new rules

The algorithm extends RDR as follows:

Inputs: current knowledge base; behavioural traces; a priority list .

for each attribute in the priority list:


1. Compare the attribute's previous qualitative state with its next qualitative state. If there is a change (e.g. it was increasing and becomes steady) then:

2. Create a test for the attribute. The test is based on the attribute's current value and its previous qualitative state. The test always has the form:

Where op is ">=" if the previous direction was increasing and "<=" if it was decreasing. "Value"  is the value in the current record. The new test is applied to the cornerstone case associated with the last rule that was satisfied to make sure the test is true for the current case but excludes the cornerstone case.

3. Add the test into a condition list.

4. Attributes in the priority list are ordered by a numerical score. Increment the attribute's priority.

5. If the number of tests in the condition list reaches a user defined maximum, scan the rest of the attributes and simply update their priorities if their qualitative state has changed.

If the condition list is not empty, create a rule and add it to the RDR. The conclusion of the rule comes from the action recorded in the trace. The current record becomes the rule's cornerstone case. The rule will be added as an exception to the last rule in the RDR if that rule is evaluated true (true branch). It is added as an alternative if false (else).

The output of LDRDR is an extension of the original RDR to cover cases in the input data that were not covered by the original RDR.


4.3. The priority list

There is a priority list for each control action. These lists can be transferred from one stage to another. During learning, the priority list is updated automatically by considering attributes that contribute more in rule generation (except for the attributes that the expert decides are to be tested first). The priority of an attribute increments by one each time LDRDR notices a change in its qualitative state. This list is always sorted by priority.

LDRDR chooses attributes from the top of the list. After choosing the attribute, LDRDR looks at the logged data to decide whether there is a change in the qualitative state of that attribute or not. The attribute will be included in one of the tests in the new rule if there is a change in its qualitative state. This process continues until LDRDR creates the maximum number of tests allowed or reaches the end of the priority list.


5 Constructing an Autopilot with Parvaz

The manual knowledge acquisition part of this system (DRDR) is effective when it is possible for the pilot to articulate rules related to his or her performance. These rules tend to be general in nature and if they are not complete, in themselves, they are often useful as constrains on the learning system. Thus, the complexity of the rules is reduced.

Knowledge acquisition begins by applying some simple rules created manually by DRDR or by using LDRDR, to logged information. In both cases, rules can be tested by running the simulation in autopilot mode . During the flight, if the aircraft does not follow the expected path, the pilot is able to pause the flight and trace the rules that have been executed or are currently being executed. The pilot is also able to modify existing rules that seem incorrect by adding new rules. In this case, the previous and current status of the aircraft, plus all the simulations state variables, will be presented to the pilot. As well, all the rules under execution for each control action will be reported.

If the pilot decides to create rules using LDRDR, he or she must fly the aircraft and record data. This task can be repeated as many times as the pilot wants. After logging data, the log files are preprocessed and passed to LDRDR

The above procedure is repeated until a set of successful clones has been created. In our experiments, knowledge bases are created one stage at a time. This has the advantage that rules constructed for one stage can be transferred and adapted for other stages, thus reducing some of the effort required in later stages. The priority lists can also be transferred from one stage to another or new priority lists can be created for each new stages.

After every modification of the RDR (manually or automatically), the flight simulation is run in autopilot mode to test the new RDR. To do this, the code of the original autopilot is replaced by the RDR (translated into C). A C function is also incorporated into the flight simulator to determine the current stage of the flight and when to change stages. The appropriate set of rules for each stage is then selected from four independent if-statements in each stage for every control action (Sammut et al, 1992). Table 2 shows a controller built for the first stage. Note that these are the rules created by one pilot. Another pilot would almost certainly create slightly different rules.


5.1 Analysing rules

5.1.1 Drawing the trees and interpreting them as if-then rules

DRDR has the option to convert the RDR into a decision list of if-then rules. In this case, each node of a RDR will be displayed as a rule (Figure 4). This includes all the satisfied conditions from the root to that node. In our experiments, we found this option very useful for users when they needed to create new rules. Rules are stored as C if-then statements. A macro, "THEN" has been added for readability.



Figure 4: Window for drawing trees and converting them as if-then rules.

5.1.2 Navigating through the tree and investigating rules

DRDR makes it possible for the pilot to investigate each node by entering its number. In this case, the current status of the aircraft plus the conditions satisfying the last rule are presented. Also, the conclusion reached and all the satisfied conditions are reported to the pilot. The rule's number plus the number of its parent and children are also available. The pilot is also able to see the information about all these nodes (Figure 5).

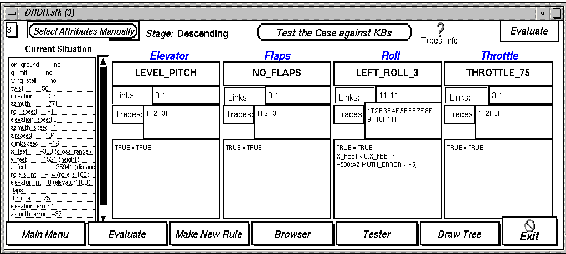

Figure 5: Window for investigating each node of a tree.

5.2. Creating new rules

5.3. Logging flight information

6 Testing the system

Parvaz was tested using three volunteers. Among the subjects, only one of them, the first author, was familiar with Parvaz, while another was familiar with a flight simulator. All subjects were postgraduate students in computer science. Their task was to create a set of knowledge bases using Parvaz that could successfully complete the previously specified flight plan.

Prior to the experiments, the subjects received a one hour tutorial in the use of Parvaz and attended a demonstration. During the demonstration, the demonstrator explained how he flew the aircraft and the subjects were allowed to ask questions about the flight and the flight plan. They were allowed to practice with the simulator until they became proficient in flying the aircraft. During the experiments the following data were collected:

• the number of times that subjects interrupted the flight simulator to modify the knowledge base or investigate it,
• the number of rules they created,
• the frequency of use of DRDR and LDRDR,
• the amount of time they spent creating rules,
• their comments about Parvaz.

7 Conclusions

Examples can be used in two ways. They may be used as input to an induction program whose task is to find an abstraction of a control strategy from the data. Examples may also be used to induce the expert to discern difference between cases, thereby allowing the knowledge acquisition system to construct rules semi-automatically. The work presented in this paper demonstrates the feasibility of both uses of examples. In particular, it shows that the RDR methodology can be extended to domains where the expertise involved is necessarily subcognitive.

There are several directions in which future research might head.

• It was noted that the pilots in these experiments used DRDR as the primary tool for building rules, but when the situation under analysis become too complex, LDRDR was invoked. A question of considerable interest arises: is it possible to quantify the point at which the cross-over occurs.


• While RDR's have proved effective in capturing the pilot's knowledge, ideally a real pilot should never have to see them. That is, the pilot's interaction with the knowledge acquisition system should be entirely within the cockpit, providing examples and comments just as an instructor would, by pointing to instruments, etc.


• The robustness of LDRDR needs to be investigated further, especially when noise, such as turbulence and wind drift, are introduced into the simulator.

Acknowledgments

References

Bratko, I. (1993). Qualitative reasoning about control. In Proceeding of the ETFA93 Conference, Cairns, Austria, : PP

Compton, P. (1992)." Insight and Knowledge." AAAI, Spring Symposium: Cognitive aspects of knowledge acquisition., Stanford University, PP 57-63

Compton, P. J., & Jansen, B. (1988). Knowledge in context: A strategy for expert system maintenance. In Proceedings of the Australian Artificial intelligence Conference,

Dzeroski, S. (1993). Discovering Dynamics. Proceeding of the 10th International Conference on Machine Learning (eds. Utgoff, P.), Amhert, Massachusetts, : PP 97-103.

Gaines, B. R. and P. Compton (1992). Induction of Ripple-Down Rules. Proceeding of the 5th Australian Joint Conference on Artificial Intelligence, Hobert, Tasmania, : PP

Kang, B. H. (1995). "Validating Knowledge Acquisition: Multiple Classification Ripple Down Rules." University of New South Wales, Ph.D. thesis.

Makarovic, A. (1991). A Qualitative Way of Solving the Pole Balancing Problem Machine Intelligence, Eds. J. Hayes, D. Michie, E. Tyugu, Oxford, : PP 241-258.

Michie, D., & Chambers, R. A. (1968). Boxes: An Experiment in Adaptive Control. In E. Dale & D. Michie (Eds.), Machine Intelligence 2. Edinburgh: Oliver and Boyd.

Michie, D., Bain, M., & Hayes-Michie, J. E. (1990). Cognitive models from subcognitive skills. In M. Grimble, S. McGhee, & P. Mowforth (Eds.), Knowledge-base Systems in Industrial Control. Peter Peregrinus.

Quinlan, J. R. (1993). C4.5: Programs for Machine Learning. San Mateo, CA: Morgan Kaufmann.

Sammut, C., Hurst, S., Kedzier, D., & Michie, D. (1992). Learning to Fly. In D. Sleeman & P. Edwards (Ed.), Proceedings of the Ninth International Conference on Machine Learning, Aberdeen: Morgan Kaufmann.

Sammut, C. (1996). Automatic construction of reactive control systems using symbolic machine learning. Knowledge Engineering Review.

Selfridge, O. G., R. S. Sutton and A. G. Barto (1985). ìTraining and Tracking in Robotics.î In Proceeding of the Ninth International Conference on Artificial Intelligence, Los Altos, CA: Morgan Kaufmann, : PP 670-672.

Shiraz, G. M. and C. Sammut (1997)." Combining Knowledge Acquisition and Machine Learning to Control Dynamic Systems." The Fifteenth International Joint Conference on Artificial Intelligence (IJCAI-97), Nagoya, Japan, PP

Urbancic, T., & Bratko, I. (1994). Reconstructing Human Skill with Machine Learning. In A. Cohn (Ed.), Proceedings of the 11th European Conference on Artificial Intelligence, John Wiley & Sons.
